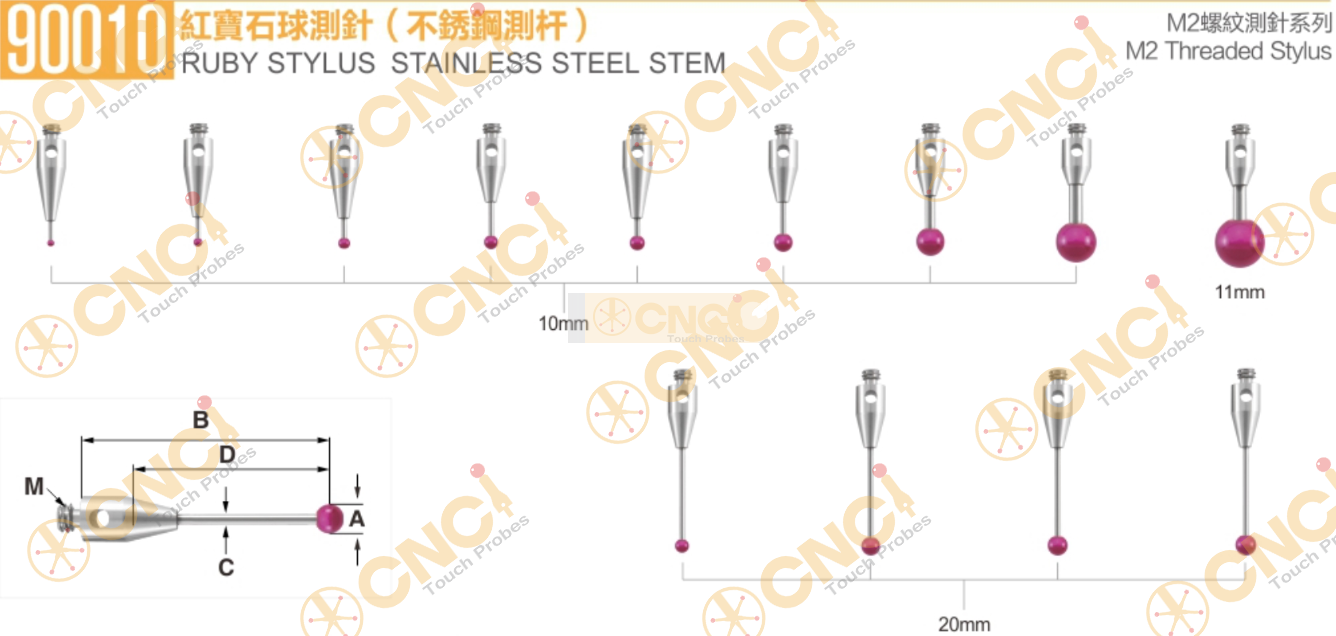

| Thread Size | Ball Dia. | Overall Length | Stem Dia. | Effective Length | Order No. | Model |
|---|---|---|---|---|---|---|
M2 | 1.0 | 10 | 0.7 | 4.5 | 90010-10-10-2 | YK-A-5000-7806 |
| 1.5 | 0.7 | 4.5 | 90010-15-10-2 | YK-A-5000-7802 | ||
| 2.0 | 1.0 | 6.0 | 90010-20-10-2 | YK-A-5000-7807 | ||
| 2.5 | 1.0 | 6.0 | 90010-25-10-2 | YK-A-5000-7803 | ||
| 3.0 | 1.5 | 7.5 | 90010-30-10-2 | YK-A-5000-3604 | ||
| 4.0 | 1.5 | 10.0 | 90010-40-10-2 | YK-A-5000-4154 | ||
| 5.0 | 2.5 | 10.0 | 90010-50-10-2 | YK-A-5000-4155 | ||
| 6.0 | 2.5 | 10.0 | 90010-60-10-2 | YK-A-5000-4156 | ||
| 8.0 | 11 | 2.5 | 11.0 | 90010-80-10-2 | YK-A-5000-4158 | |
| 2.0 | 20 | 1.4 | 14.0 | 90010-20-20-2 | YK-A-5000-3603 | |
| 2.5 | 1.4 | 14.0 | 90010-25-20-2 | YK-A-5000-7804 | ||
| 3.0 | 1.5 | 17.5 | 90010-30-20-2 | YK-A-5000-4160 | ||
| 4.0 | 1.5 | 20.0 | 90010-40-20-2 | YK-A-5000-4161 |
